Series 3000

Product Options
Clear

This product can be hired. Click the button below to send your query now.

REQUEST INFORMATION NOW

Does this product need periodic servicing? Click the button below to send you query now.

REQUEST INFORMATION NOW
SKU: S3K- Categories: , Tag:

Description

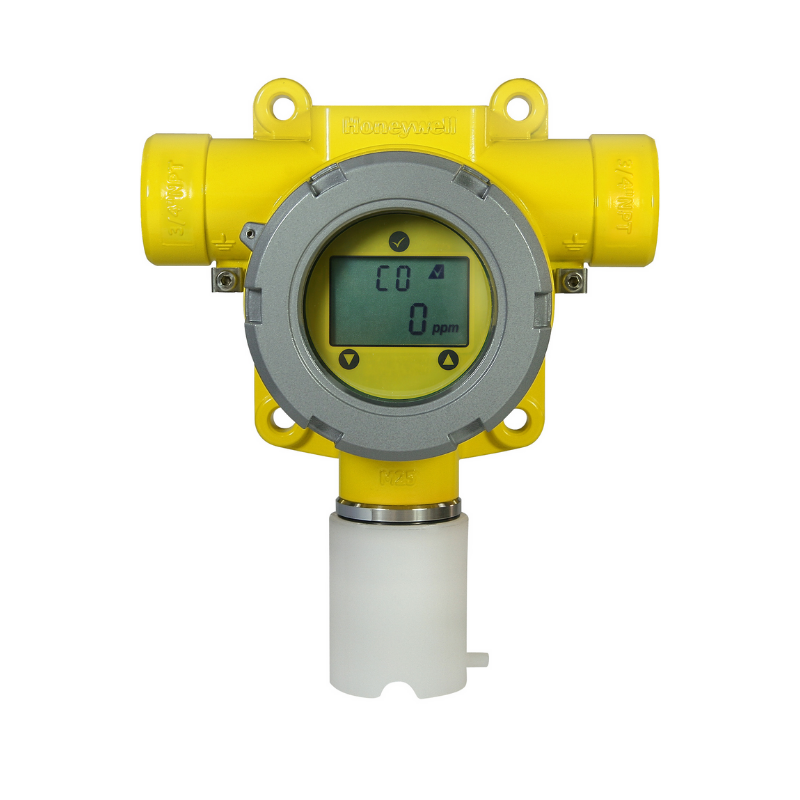

 Series 3000 Mkll and Mklll Transmitters with Sensor 2-wire loop powered toxic and Oxygen gas detector for use in potentially explosive atmospheres – explosion proof and intrinsically safe versions Features & Benefits

  • Reliable detection
  • Reduced installation costs
  • Reduced commissioning costs

 Quick Specs

  • Maximum dimensions 164mm x 201mm x 99mm (6.4 x 7.9 x 3.9)
  • Operating humidity continuous 20-90% RH (non-condensing)
  • Operating pressure 90-110kPa

 The Series 3000 range of transmitters provide comprehensive monitoring of toxic and Oxygen gas hazards in potentially explosive atmospheres. Suitable for mounting both indoors and out, they are available in two versions and offer excellent versatility. The MkII is contained in a flameproof housing, has an intrinsically safe sensor connection and is for use in predominantly Zone 1 applications. However with the use of the optional remote mounting kit the sensor of the MkII can be mounted in a Zone 0 environment. The MkIII is for use with a separate suitable IS barrier allowing the complete transmitter to be used in Zone 0 applications. These low powered gas detectors all feature a loop powered 4-20 mA connection, making them ideal for both new and retrofit installations. Users can configure the detector through the use of the easy to read LCD and intuitive interface while fault diagnostic software and a programmable calibration period greatly simplify maintenance procedures.

Additional information

Product Name

Series 3000 MkII, Alu, Series 3000 Mklll, Alu, Series 3000 MkII, SS
