BW Clip4 Four-Gas Detector

Product Options
Clear

Do you have a specific query about this product? Click the button below to send your query now.

REQUEST INFORMATION NOW

This product can be hired. Click the button below to send your query now.

REQUEST INFORMATION NOW

Does this product need periodic servicing? Click the button below to send you query now.

REQUEST INFORMATION NOW

Description

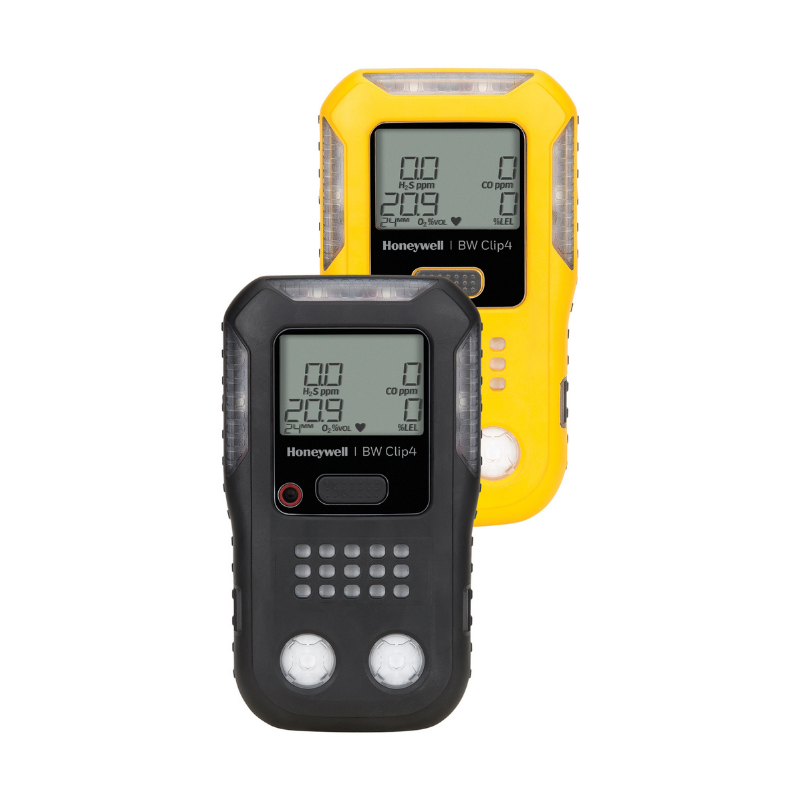

BW™ Clip4 Four-gas Detector

The BW Clip4 four-gas detector is a unique disposable 4-gas unit, easy to use with no hassle. Wearable, easy multi-gas detection that’s always on. No charging, no battery or sensor replacements, and no hassle. A simpler, low cost of ownership guaranteed by the Honeywell commitment to quality and backed by a full ecosystem of supporting technologies. When you clip on the Honeywell BW™ Clip4 you know – it’s on.

Features of the Honeywell BW™ Clip4 Multi-Gas Detector

  • Simple one-button operation.
  • Durable, ergonomic, and wearable.
  • Real-time gas concentrations are shown on LCD.
  • Flashing red non-compliance indicators warn workers that the detector has not been bump tested according to the schedule.
  • Daily full-function self-test of sensors, battery status, circuit integrity, and audible/visual alarms.
  • Maintenance-free, two years of non-stop runtime with no charging or battery replacements.
  • Operating temperature -4 to +131°F / -20 to +50°C
  • Compatible with IntelliDoX docking system and instrument management system.
  • Logging of the 70 most recent events.
  • Concussion proof.

Technical Specifications

  • Adjust the STEL period (5-15 minutes in 1-minute intervals).
  • Calibration span levels.
  • Calibration interval.
  • Bump test interval.
  • Select combustible gases measurement: 0-100% LEL (Lower Explosive Limit) or Methane gas 0-5.0% vol.
  • Alarms and Types- Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit).
  • Ingress protection ip68.
  • Class I, Div 1, Group A, B, C, D Class I, Zone 0, Group IIC.
  • ATEX- II 1G Ex ia IIC T4 Ga.

Additional information

Product Name

BW Clip4(O2,LEL,H2S,CO),EMEA ver,Black housing, BW Clip4(O2,LEL,H2S,CO),EMEA ver,yellow housing
