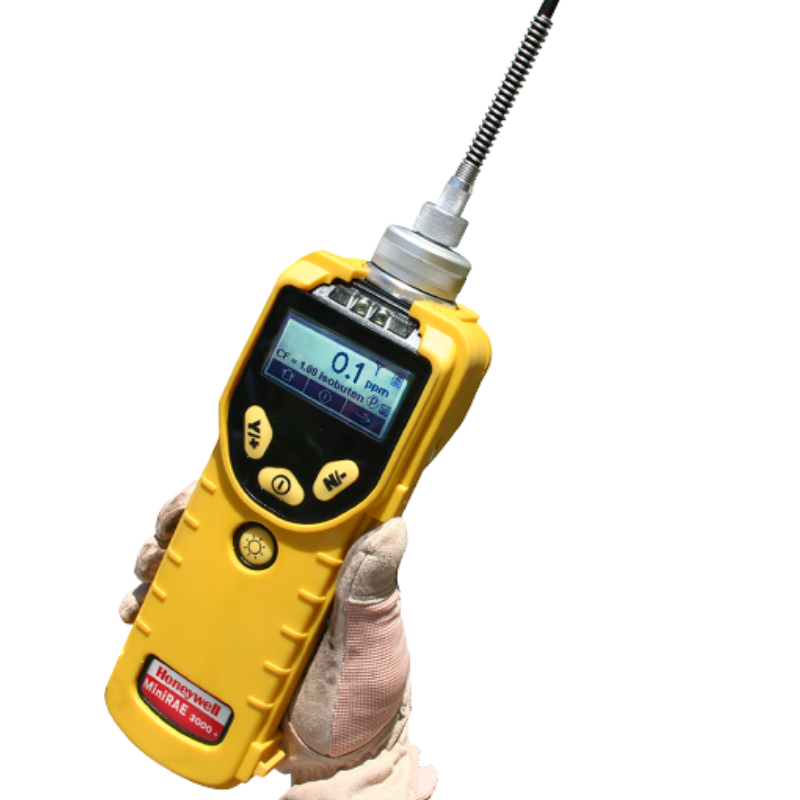

MiniRAE 3000

Product Options

This product can be hired. Click the button below to send your query now.


Does this product need periodic servicing? Click the button below to send you query now.



Minirae 3000

Whether for industrial hygiene, leak detection, or HazMat response, the MiniRAE 3000 + offers a wide range of VOC monitoring capabilities. This MiniRAE 3000 + has a photoionization detector that detects from 0-15,000 parts per million, a rapid three-second response time, built-in correction factors for 200 compounds, patented auto-cleaning sensor technology, and Reflex PID Technologyâ„¢, which lets you measure high levels of ionizable chemicals.
In addition to its powerful sample pump that draws through 100 feet of tubing horizontally or vertically, this device also comes with a flashlight for visibility in darker environments and an IP 65/67 dust-tight and water-proof housing, making it reliable even in harsh environments.


  • A powerful, built-in sample pump can draw samples up to 100 feet (30m) horizontally or vertically.
  • The alarm is loud and audible at 95dB
  • Bright red flashing visual alarm
  • Batteries are interchangeable between lithium-ion and alkaline.
  • The ProRAE Remote software can simultaneously control and display readings from 64 remote detectors.
  • Accessible gas library to change gases for different applications
  • Datalogging for up to 6 months that can be accessed by ProRAE Studio (free to download)
  • Warranty of 3 years on the 10.6 Lamp
  • 16 hours operation

What Are the Dimensions of the Minirae 3000?

With its compact and portable dimensions, the Minirae 3000 is ideal for those who wish to take measurements. It’s only 3 inches wide, 10 inches tall, and 2.5 inches thick, making it easily portable. It is also only 26 ounces in weight, so it won’t even bother you in your pocket.

What Is the Range of the Minirae 3000?

MiniRAE 3000+ delivers some of the most advanced VOC monitoring capabilities available on the market, whether you need it for industrial hygiene, leak detection, or HazMat response. The MiniRAE 3000 + is equipped with a photoionization detector (PID) that can detect ionising compounds from 0-15,000 ppm, rapid response times of three seconds, correction factors for more than 200 compounds, patented auto-cleaning sensor technology, and Reflex PID Technologyâ„¢, which allows it to measure one of the highest levels of ionizable chemicals currently available.

How Long Does a Measurement Take With the Minirae 3000?

The Minirae 3000 provides real-time measurement and alarms when exposure exceeds preset thresholds as a broadband VOC gas monitor and data logger.
Gas concentration alarm settings (low, high, TWA, STEL) are compared to the programmed gas concentration alarm limits during each measurement period. To warn of an alarm condition, the loud buzzer and red flashing LED are activated immediately if a concentration exceeds the pre-set limits.

How Accurate Is the Minirae 3000?

The Minirae 3000 has an accuracy level of 10 to 2000 ppm: ±5% at the calibration point. A PID breaks down VOCs in the air into positive and negative ions using an ultraviolet (UV) light source. PIDs then detect or measure the charge of the gas ionised, which is a function of the VOC concentration in the air.
As a result of Reflex PID Technology, the Minirae 3000 is an extremely reliable handheld volatile organic compound (VOC) monitor. In addition, the MiniRAE 3000+ features a third-generation patented PID technology and over 200 RAE correction factors integrated into its integrated RAE correction system. It’s capable of measuring one of the highest levels of ionizable chemicals available.

How Does the Minirae 3000 Work?

Using a flame ionisation detector (FID), the Minirae 3000 measures volatile organic compounds (VOCs) in the air with ease. Air samples are drawn into the instrument, passing them through a column containing adsorbent material. The adsorbent material then absorbs the VOCs in the air sample, and the air is then vented into the atmosphere.

Additional information

Product Name

MiniRAE 3000, NW ATEX, PID 10.6eV, Li-Ion, Monitor, MiniRAE 3000,N-WL,ATEX,PID-11.7eV,Li-Ion,Monitor
