Description

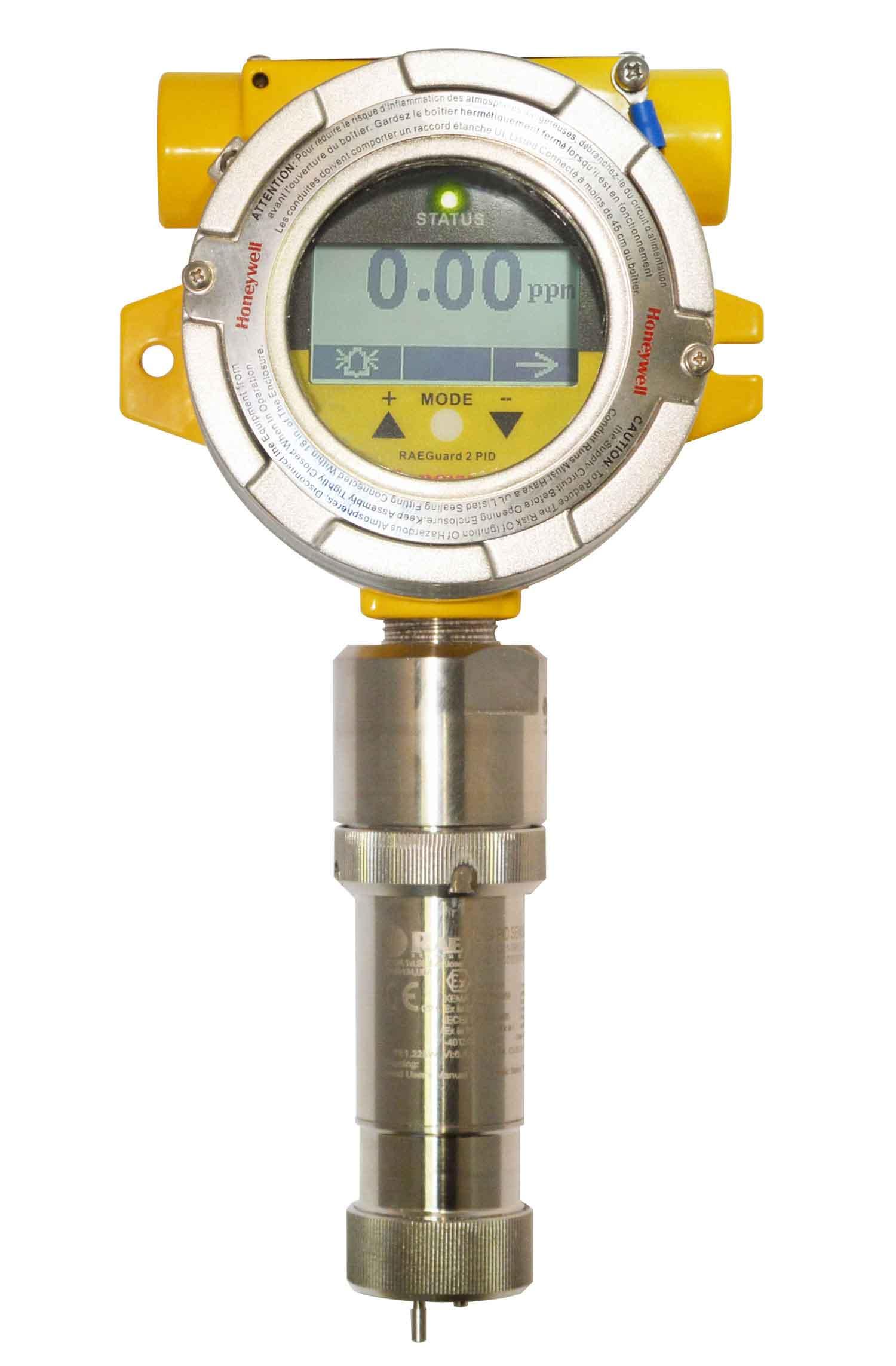

RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a broad range of volatile organic compounds (VOCs). Calibration and maintenance have been substantially simplified because of the digital PID sensor module’s ability to be easily removed in hazardous situations and calibrated or maintained without the use of tools. Commonly used for headspace testing during soil remediation and oil spill works.

Features & Benefits

  • Faster response time
    – Thanks to the sample flow-through design
  • Reduce maintenance cost
    – Easy to remove sensor module in hazardous locations without using of tools
  • No false alarms
    – Large UV lamp and better sealing allows greater sensitivity, faster speed of response and better resolution



Quick Specs

  • Digital Smart Sensor Technology
  • Detection range 0.01 to 100 ppm, 0.1 to 1000 ppm, or 1 to 1000 ppm
  • Operates on 10 to 28 VDC and provides an analogue (4-20mA) three-wire signal output, and RS-485 Modbus digital signal output
  • Graphic display and LED light status indicator for fault and alarm conditions

RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a broad range of volatile organic compounds (VOCs). The RAEGuard 2 PID operates on 10 to 28 VDC and provides an analogue (4-20mA) three-wire signal output and RS-485 Modbus digital signal output. Calibration and maintenance have been greatly simplified as the digital PID module can be easily removed in hazardous locations for calibration or maintenance. The RAEGuard 2 PID has a graphic display and local sound alarm and LED light status indicator. In addition, Low, High, and Fault relays can be configured to trigger external alarms or process controls. A magnetic key interface enables the detector to be calibrated and operational parameters adjusted with the explosion-proof enclosure in place.

Additional information

Product Name

Kit, RAEGuard 2 PID, ATEX/IECEx, Kit, RAEGuard 2 PID, ATEX/IECEx, Kit, RAEGuard 2 PID, ATEX/IECEx, 1 – 1000 ppm
