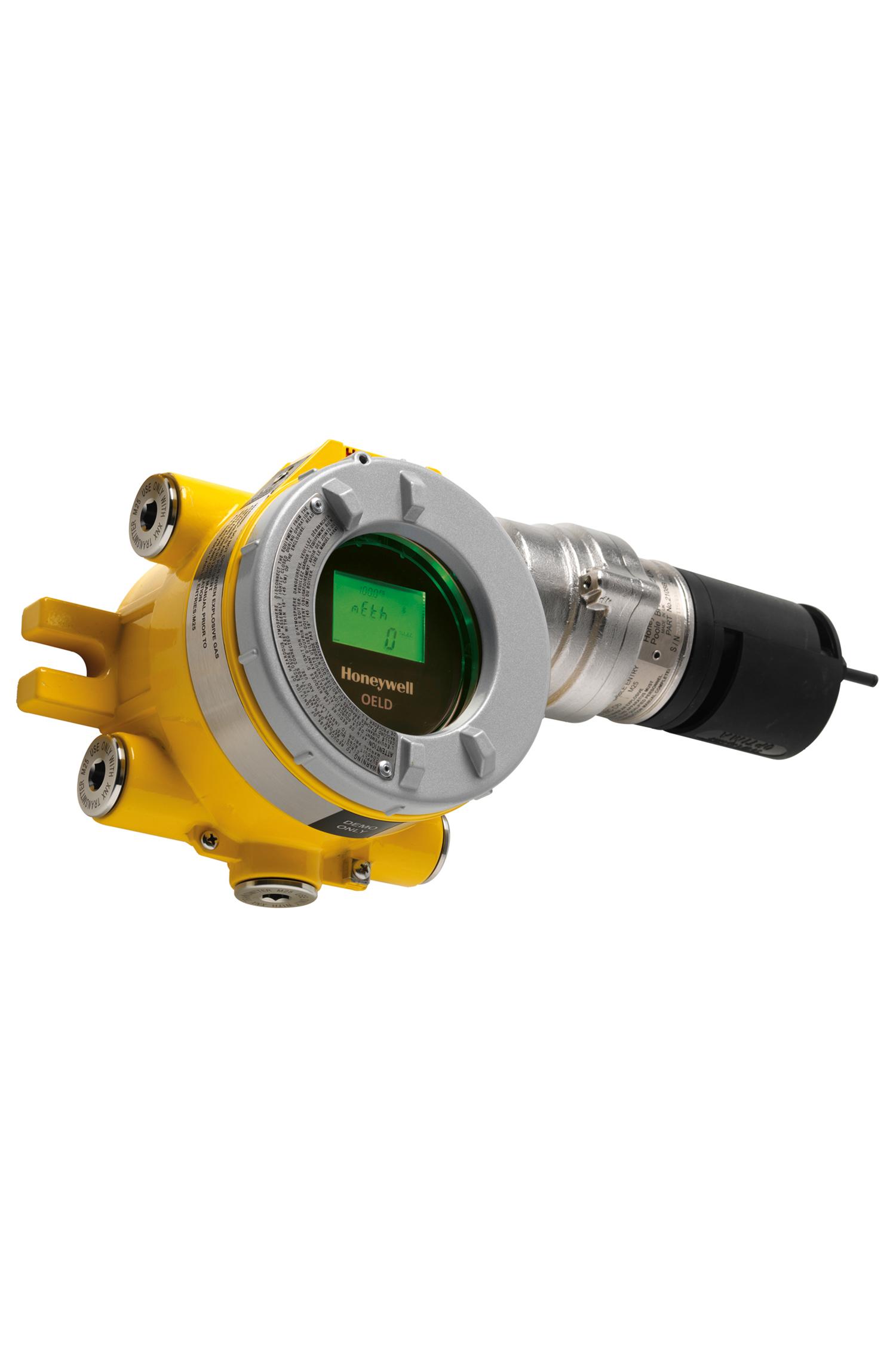

OELD (Optima Excel Local Display)

This product can be hired. Click the button below to send your query now.


Does this product need periodic servicing? Click the button below to send you query now.

SKU: OELD- Categories: , Tag:


OELD (Optima Excel Local Display) OELD is a smart junction box for either a Searchpoint Optima Plus or Searchline Excel gas detector. In addition to serving as a 4-to-20 milliamp (mA) communications bridge between the detector and the controller, the gas sensor junction box includes an LCD screen for gas concentration and other information, as well as a traffic-light indicator for at-a-glance safety status – all in a robust metal housing and with a wide range of approvals. OELD includes Bluetooth Low Energy (BLE) technology that simplifies your experience with the detector. With BLE, you can pair the OELD with a mobile phone and then use an app to perform many commissioning and maintenance tasks on the detector with less time and effort. And since the BLE method is non-intrusive, it also reduces safety risk. Features & Benefits

  • Gas sensor junction box featuring simplified maintenance using familiar smartphone technology
  • Smart junction box provides non-intrusive interaction reducing maintenance time and safety risk
  • Easy access to hard-to-reach detectors
  • Bright traffic light indicator for safety awareness

Quick Specs

  • Backward compatible with all versions of Searchpoint Optima Plus and Searchline Excel
  • Robust Aluminium or Stainless steel housing
  • Ingress protection IP66 / Type 4X (in accordance with NEMA 250)
  • Worldwide approvals including ATEX, IECEx, cULus


Additional information

Product Name

Oeld Smart Junction Box, OELD SST EXD M25 ATEX
