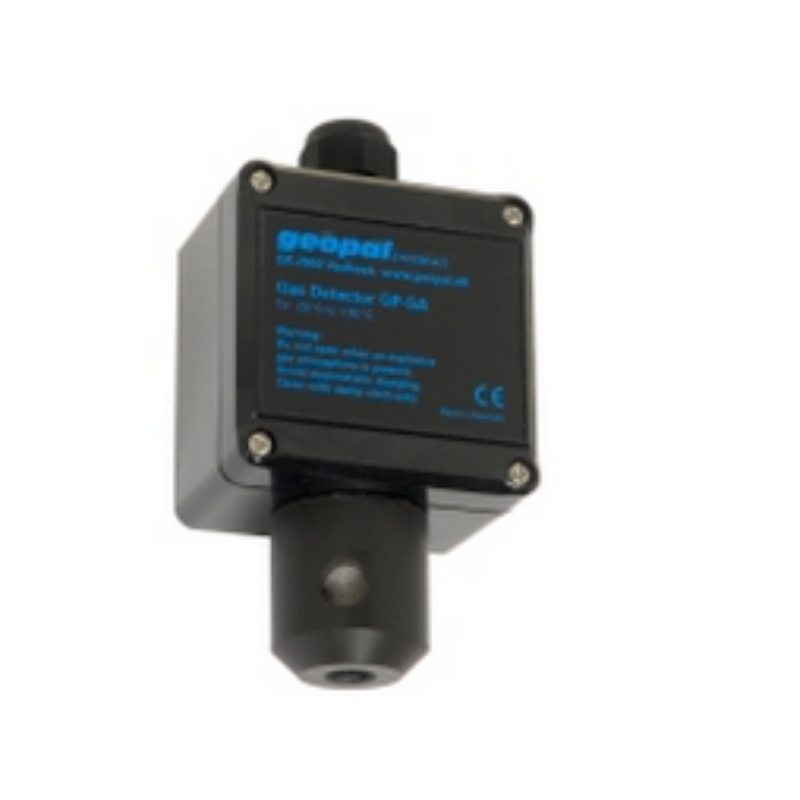

Geopal Stand Alone Detector

This product can be hired. Click the button below to send your query now.

REQUEST INFORMATION NOW

Does this product need periodic servicing? Click the button below to send you query now.

REQUEST INFORMATION NOW
SKU: GP-SA Category: Tag:

Description

The Geopal GP-SA stand-alone detector represents one of the lines in a new generation of gas detectors featuring an integrated microprocessor. The detector continuously monitors the gas concentration, whether it is in the 0-100% LEL range (lower explosion level) or the 0-40,000 ppm range, in connection with e.g. refrigerants.In the Geopal GP-SA detector the sensor signal is converted to a linear output signal of 4-20 mA or 0-5/ 10 V, and the detector is equipped with alarm relays for both low alarm, high alarm and system fault. Long-life sensorThe semiconductor sensor will typically last much longer than an electrochemical or a catalytic sensor. Another advantage is that it costs less to replace. Simple installationFor the external wiring of the detector a three-conductor cable is normally all you need. Depending on how many relay functions are required, the number of conductors would be increased accordingly. The detector is also available with a six-pole DIN plug, an option which is usually preferred if you wish to be able to quickly replace the detector. For that purpose we can also offer a mounting device that enables you to replace the detector in matter of a few minutes.

  • Detection range: 0-40,000 ppm, 0-100% LEL
  • Available gases: Methane, Propane, Butane, Hydrogen, Hexane, Benzene, Ethane, Pentane, Ethylene, R404A, 407C, R22, R134A, NH3 Ammonia, etc.
