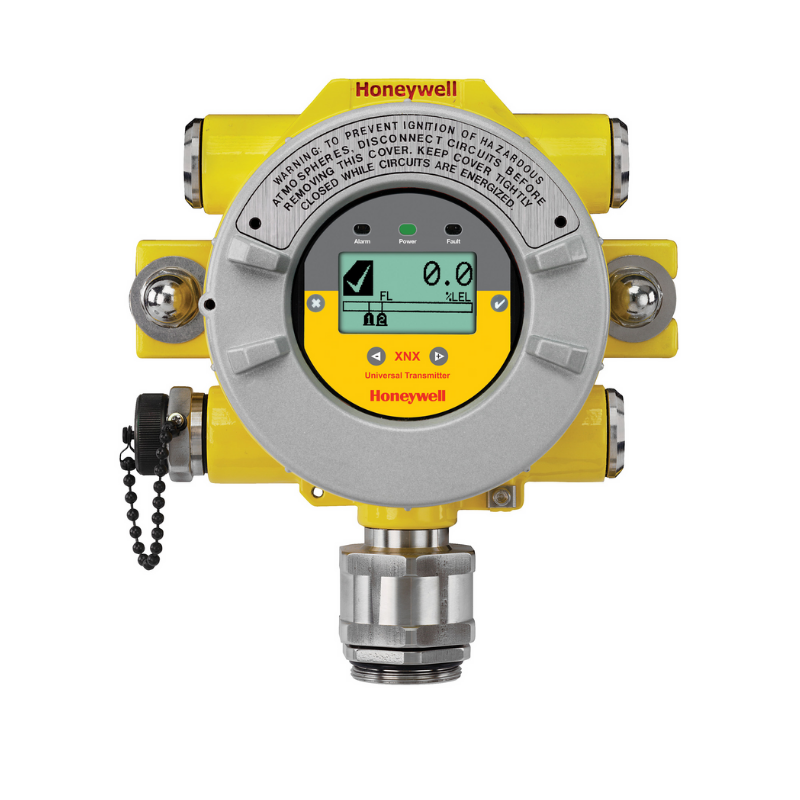

XNX Universal Transmitter (Flammable, Toxic & Oxygen)

Product Options

This product can be hired. Click the button below to send your query now.


Does this product need periodic servicing? Click the button below to send you query now.



XNX Universal Transmitter Supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs (saving customers time and money). Features & Benefits

  • Flammable gas detection 0 to 100% LFL/LEL
  • Flexible operation options
  • Minimal training required

Quick Specs

  • Material: LM25 aluminum, painted (SS316 painted optional)
  • Temperature: -40 degrees to +65 degrees Celsius / -40 degrees to +150 degrees Fahrenheit (sensor dependent)
  • Humidity: 20 to 90% RH (non-condensing)

 Product Overview XNX’s advantage comes from a simple-to-use, low-maintenance universal platform that works with other safety equipment on a digital bus system, including Honeywell Analytics’ own Searchline Excel, Optima or other gas detectors, industry standard PLCs and third-party gas monitoring controllers. XNX supports Electrochemical, Infrared and Catalytic Bead gas monitors and uses standard 4-20mA wiring and HART; options include Modbus, Fieldbus (pending) up to three relays and a local Hart Adapter for configuration and diagnostics using existing HART handheld devices. With 200+ unique configurations, XNX satisfies Class 1/Class 2 intrinsically safe, explosion-proof requirements in upstream/downstream oil, chemical, wastewater and other industries. The enclosure is available in stainless steel or aluminium, with a marine-grade coating. Five threaded ports, available in metric or NPT versions, and ruggedized mounting options provide ultimate installation flexibility. Instrumentation built on various sensing technologies can be attached locally to the transmitter or remotely with the appropriate accessories.

Additional information

Product Name

XNX Transmitter, ATEX, Alu, Toxic, XNX Transmitter, ATEX, Alu, MPD catalytic, XNX Transmitter, ATEX, Alu, MPD IR CO2, XNX Transmitter, ATEX, Alu, MPD IR Propane, XNX Transmitter, ATEX, Alu, MPD IR Methane, XNX Transmitter, ATEX, Alu, Sensepoint Hi-Temp
